Description

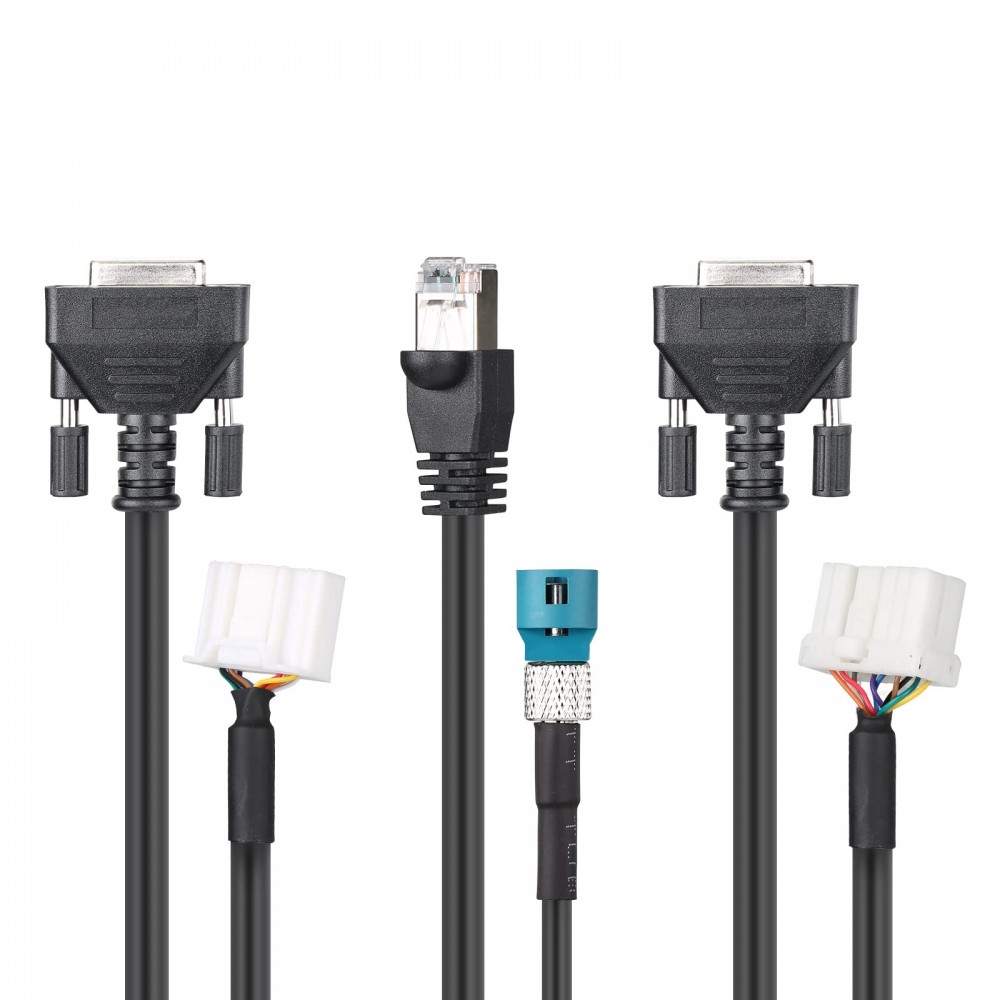

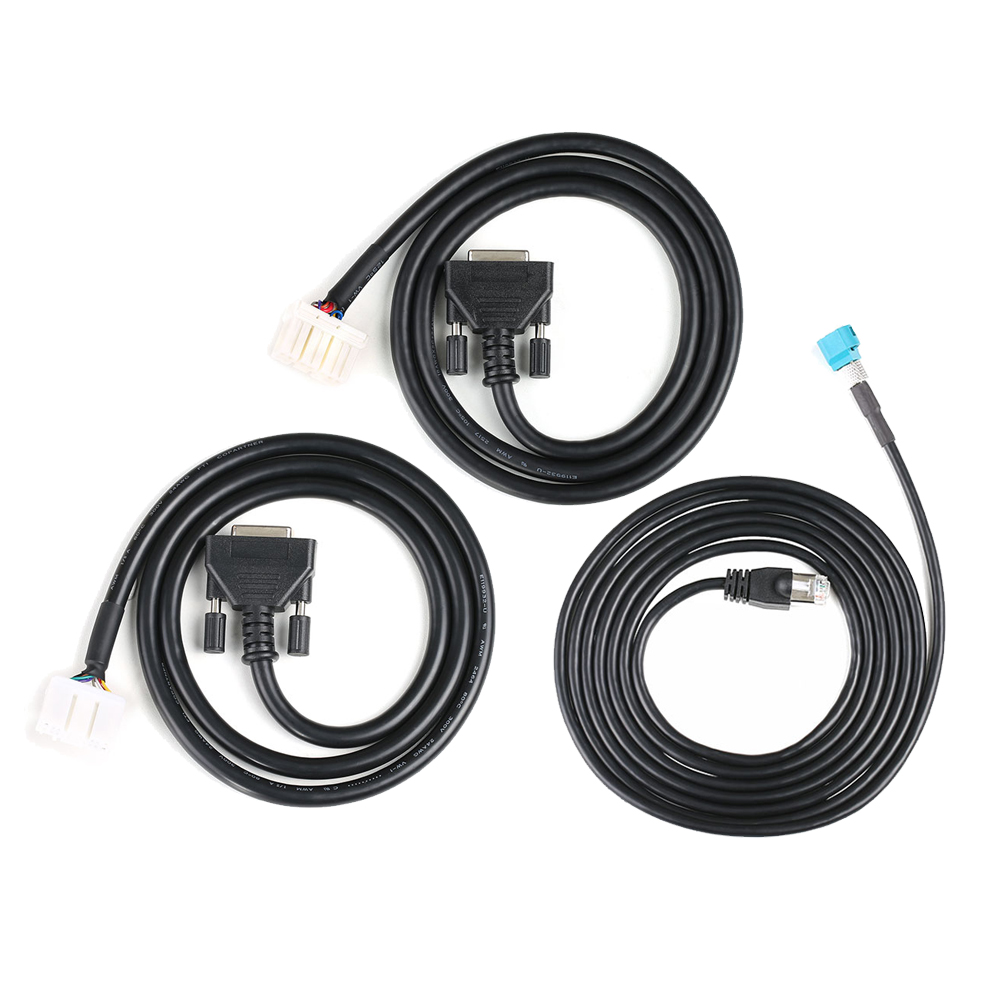

AUTEL diagnostic cables for Tesla S & Tesla X vehicle models

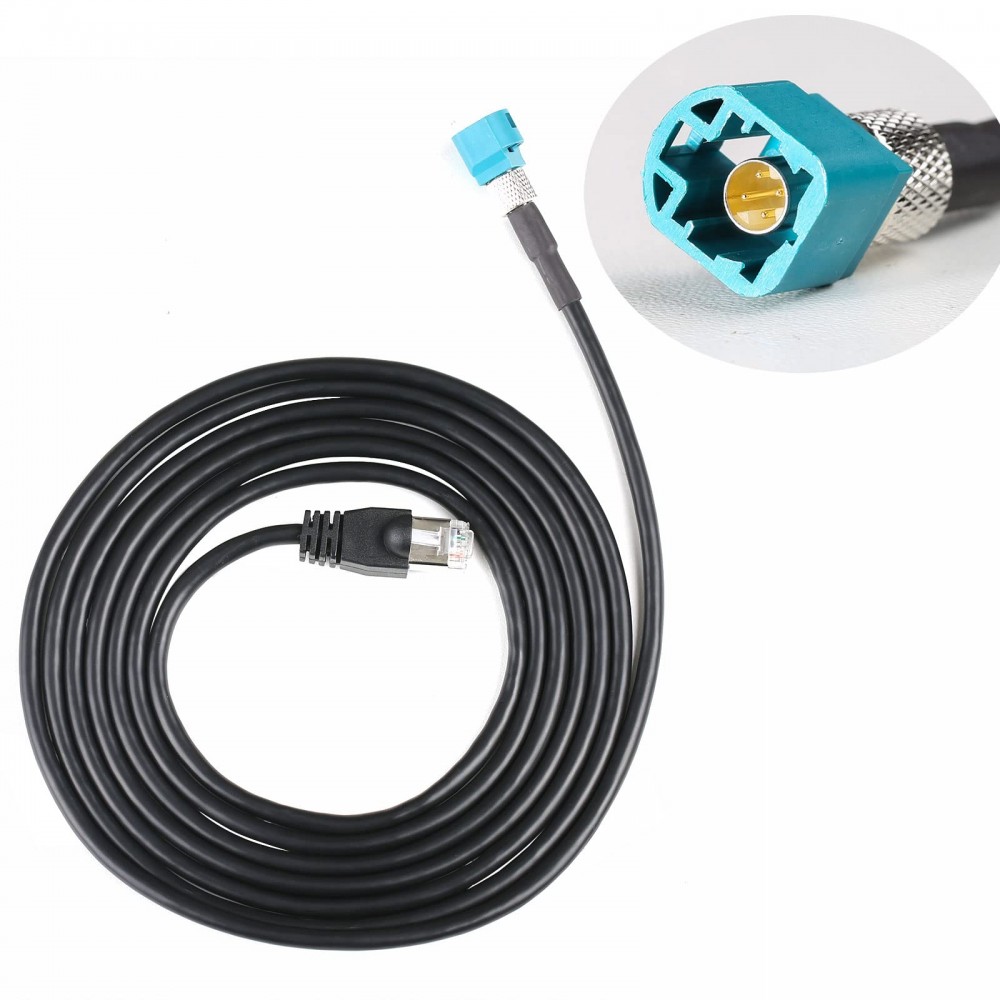

Cable LAN001

• Connects to Tesla port X861 to activate Factory Mode (instrument cluster must be disassembled)
• Connects to Tesla port X863 for diagnostics
• Pre-2015 vehicles: port X863 is located on left side of instrument panel
• Post-2015 vehicles: port X863 is located below the central control screen

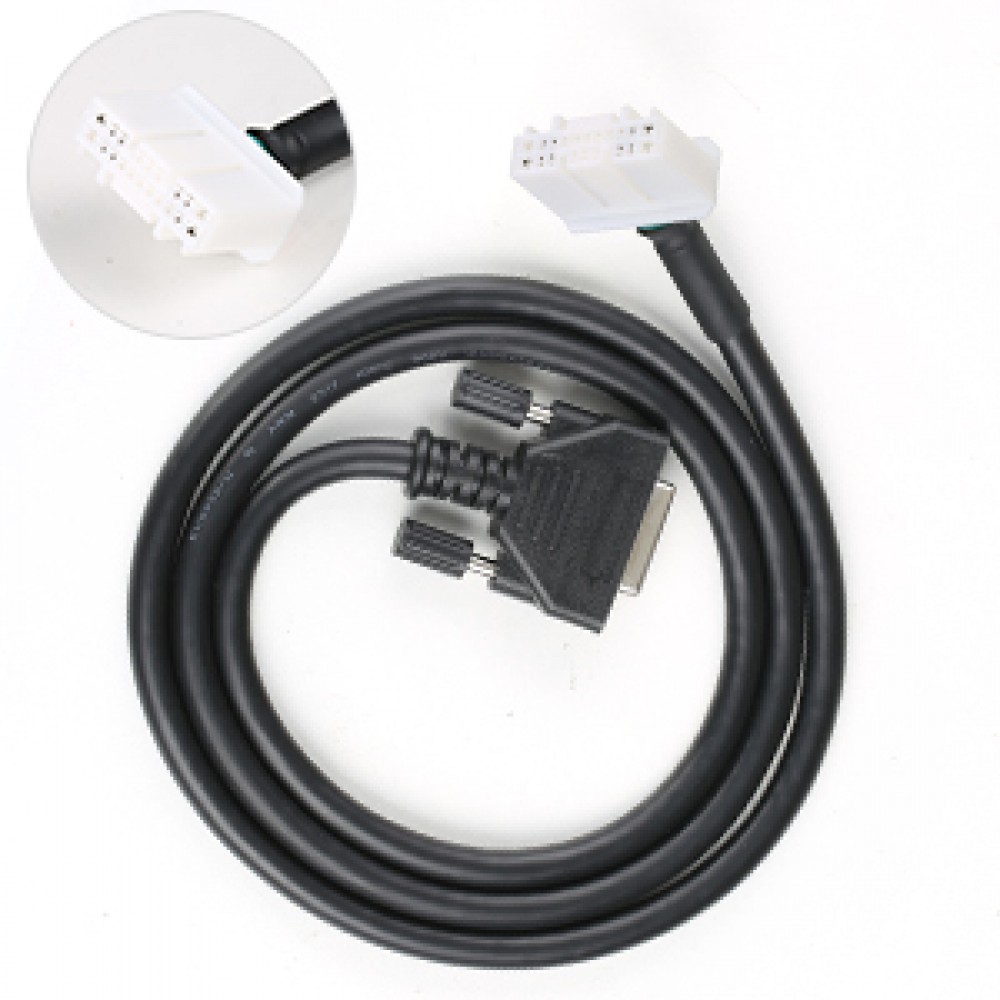

Cable CAN001

• For diagnostics of post-2015 vehicles
• Connects to Tesla port X437 (located below the central control screen)

Cable CAN002

• For diagnostics of pre-2015 vehicles
• Connects to Tesla port X437 (located below the central control screen)
