The evolution of the MARINE diagnosis

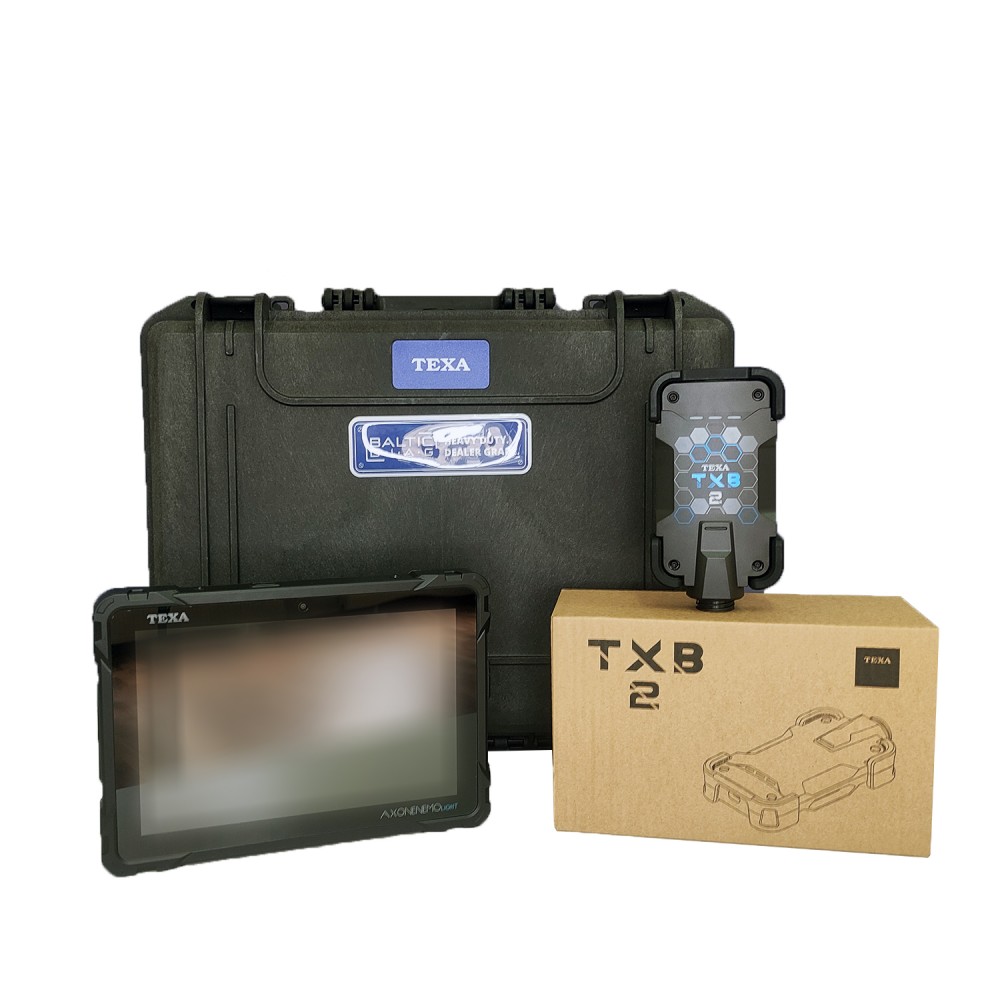

NAVIGATOR TXB 2 is the new tool that TEXA designed and developed specifically for the MARINE diagnosis environments.

Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.

The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.

The IDC5 MARINE software is complete, practical and intuitive, extremely quick to access communication with motorcycles and rapid in all diagnostic phases, from the error identification to its solution.

Nominal values associated with the error, technical data sheets, interactive wiring diagrams contain an extraordinary experience in the world of marine engines and thousands of successfully solved problems.

Special adjustments

The IDC5 software offers a wide range of special adjustments that go beyond the ordinary vehicle servicing, such as:

Injector configuration
Idle speed adaptation
Oil type setting
Winterization MAN MARINE
Cylinder compression and cut-out test
Ignition advance adjustment
Lever configuration
Lever configuration
Instrumentation configuration
Key registration
Vehicle configuration change
Key registration with Key Adapter
CAN network alignment
99 HP limitation
Service reset

Errors

This page instantly displays all the errors in the vehicle, with the related codes and descriptions.

From this page, the error reading and clearing can be carried out in a single click, as well as a self-diagnosis test on the selected system.

Nominal values

Useful to solve a fault associated with an error code detected in self-diagnosis. They provide a tree diagram to solve the fault.

Data sheets

Very accurate information on the selected vehicle, including instructions for performing a manual service reset, overviews of specific mechatronic systems and much more.

Technical data

These sheets provide technical information on the engine and indications on the maintenance plan. Very important to dig into the details of each vehicle: Mechanical Data, Wheel Alignment,  Timing Belt, Scheduled Maintenance, Component Locations.

Interactive wiring diagrams

The animations of the relevant devices create an interactive map with the flow of input and output signals to/from the control units.

Useful for enhanced troubleshooting, through interaction with the various components shown in them.

You can select specific components to identify their cables and their electrical and logical connections to other components on the wiring diagram.

Specialists in multi-brand diagnostics



Electronic injection, engine and helm management, electronic throttle, drivetrain, electronic systems for galvanic corrosion control, engine compartment.

It is unthinkable for a multi-brand workshop to carry out repair interventions on modern marine engines without the support of valid electronic diagnostics to detect errors, adapt control units, activate components, perform adjustments, reset values.

Having an adequate diagnostic tool is essential in order to remain competitive in the marine engines repair market.

TEXA’s diagnostic tool allows mechanics to solve more faults in less time and with certainty. To improve their service to customers and the workshop’s accounts.

TEXA is constantly studying vehicles in circulation all over the world and continuously increasing its diagnostic coverage; through continuous updates and software releases, it allows subscribed vehicle repairers to have a tool that covers a very large number of makes, models and systems of inboard motors, outboard motors, industrial engines/generator sets, PWC (Personal Watercrafts).
