Cummins Inline 6 Diagnostic Tool | Data-link adapter

Description

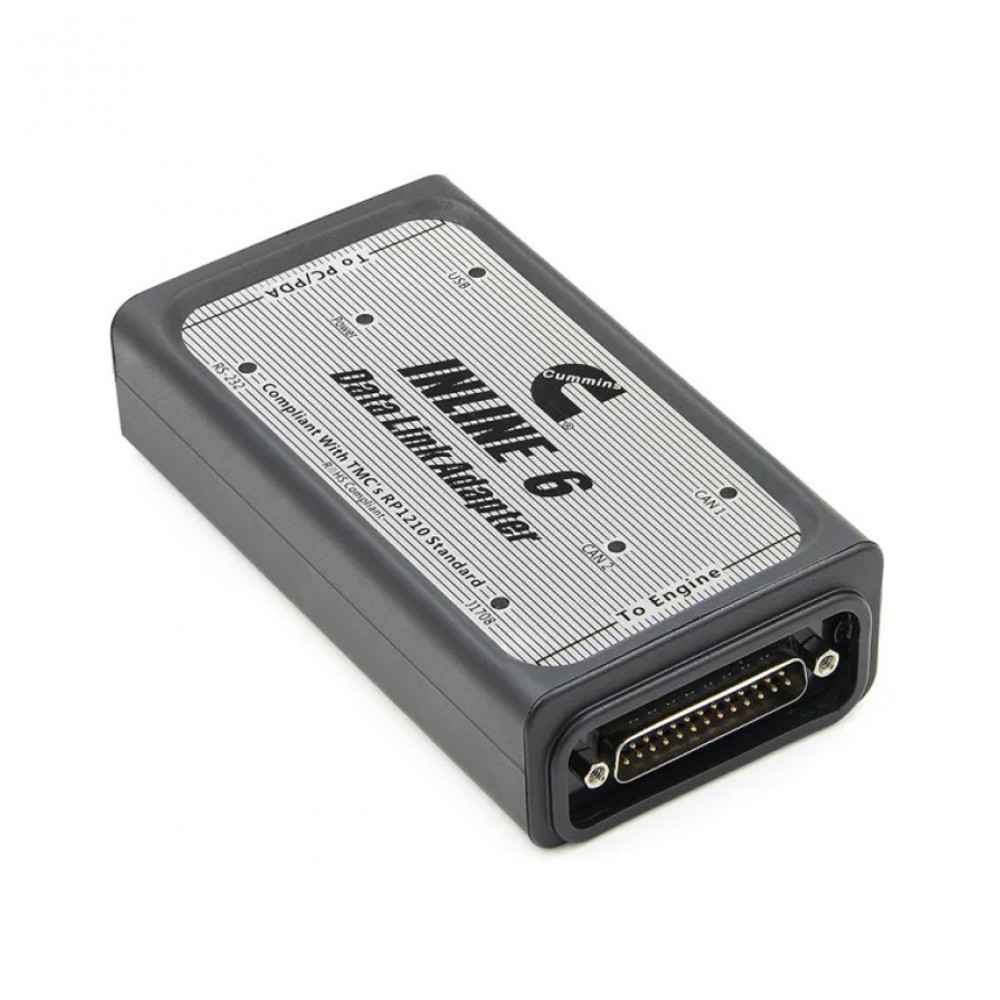

Cummins Inline 6

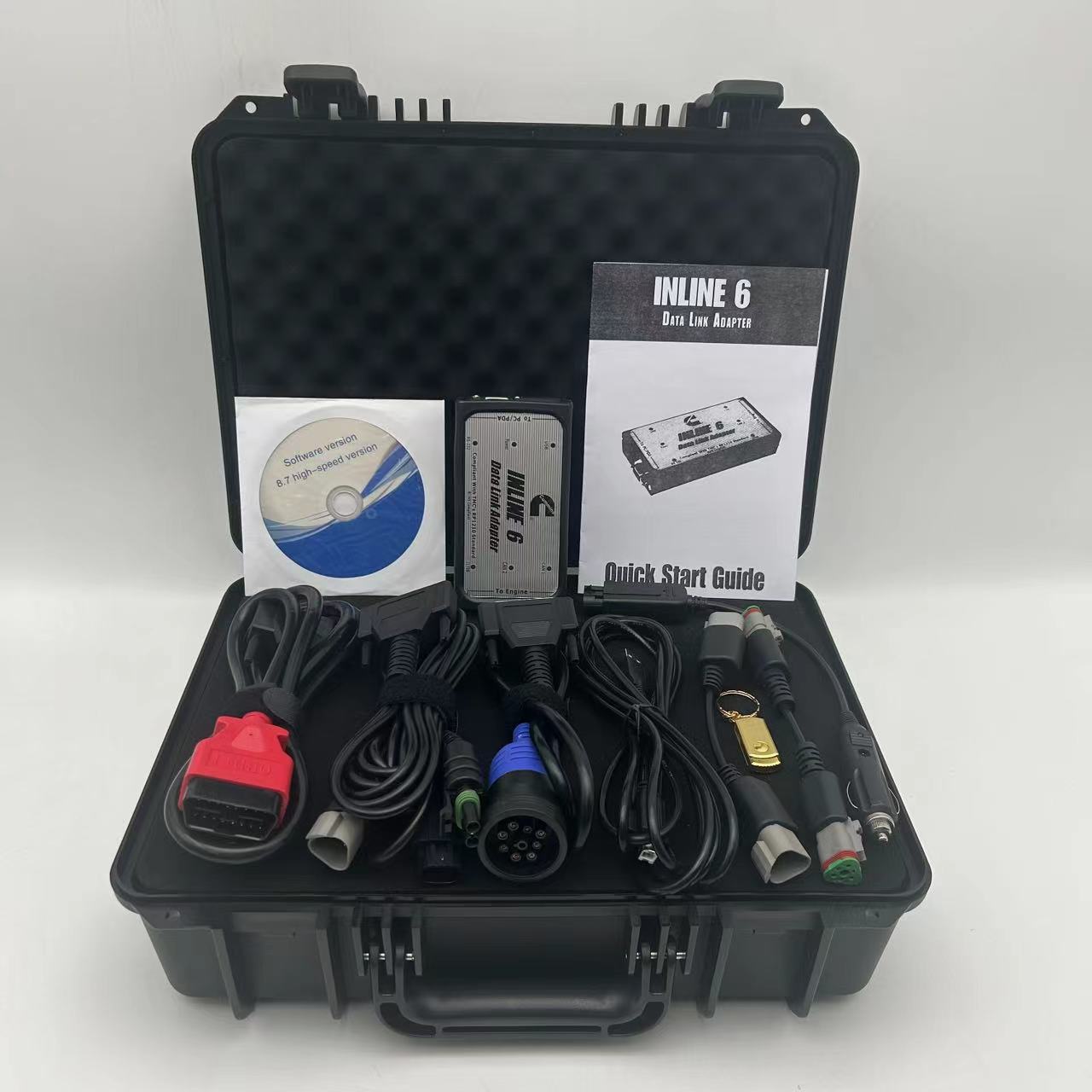

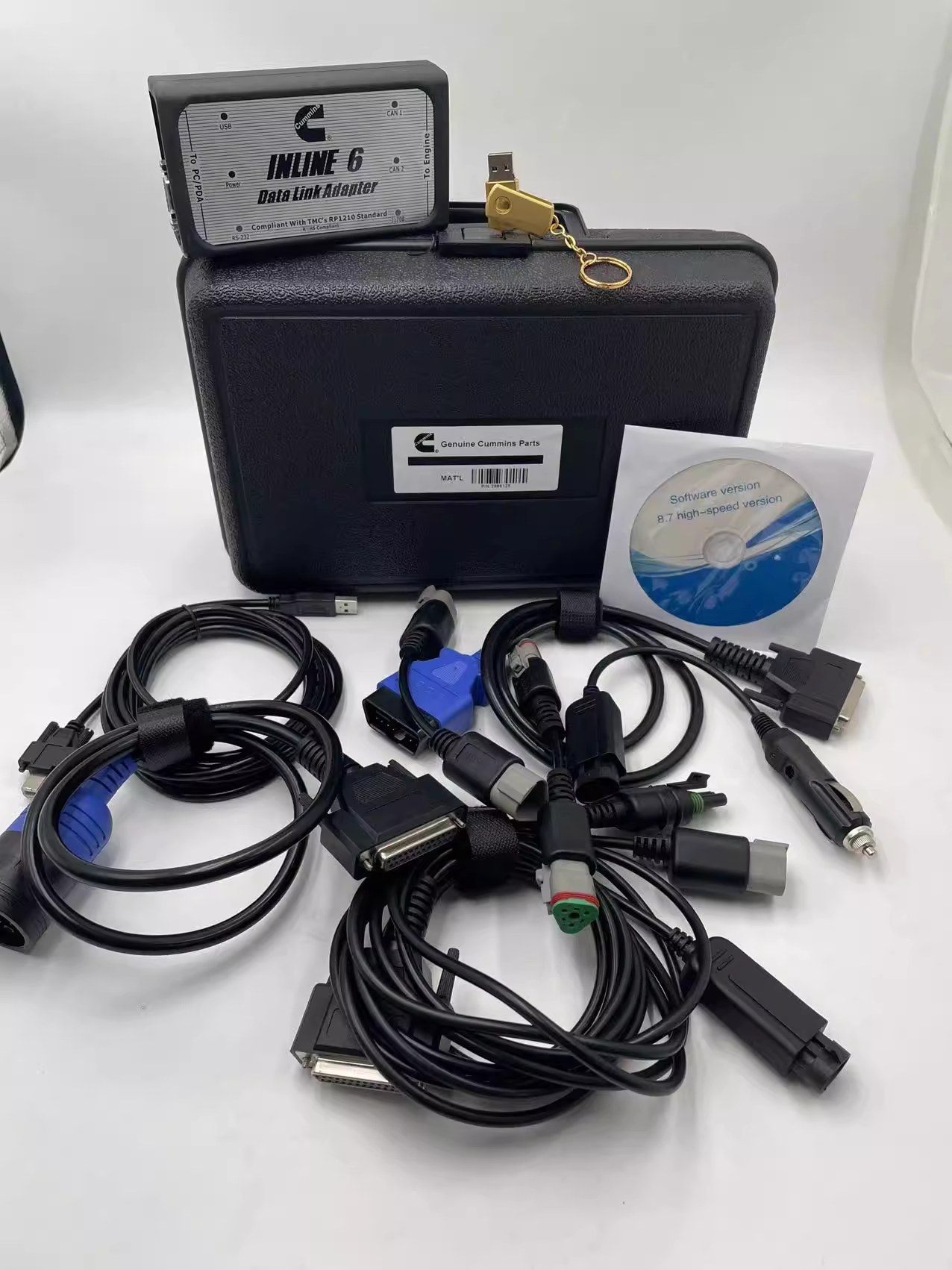

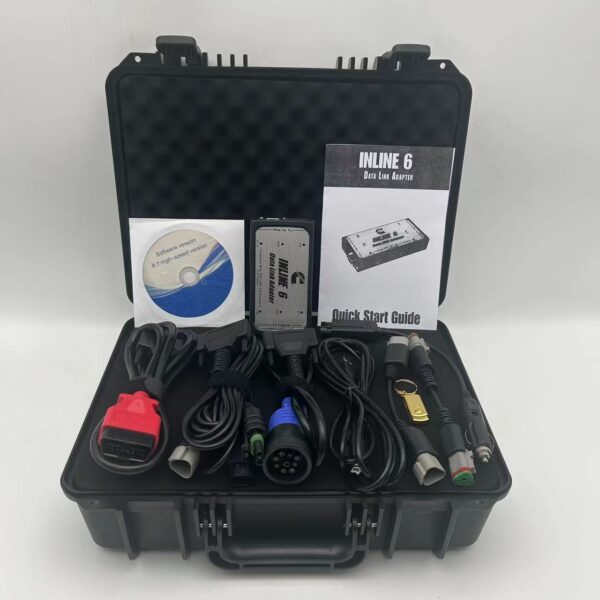

Cummins INLINE 6 is the only tool available on the market which is fully compatible with all Cummins engines. Cummins INLINE 6 Data Link Adapter is designed to work with Insite (Insite 7.6 included), PowerSpec, and Calterm III software. It supports several connection protocols like SAE J1708/J1587 data link, and two CAN/J1939. Also, you can connect it to your PC by USB (Universal Serial Bus) or COM port (RS-232). The tool is compact and easy to transport if you need to use it on the road. Suitable for Cummins maintenance professionals and workshops. Cummins INLINE 6 Data Link Adapter kit comes with basic adapter set and one year warranty. Highly reliable and durable diagnostic adapter. Keep in mind that INLINE 6 is designed to use with RP1210 compliant software. INSITE version 7.5 and later versions are compatible with the INLINE 6. Versions released earlier than 7.5 version are not 100% RP1210B compliant and may not work with this adapter.

Please note, that this product comes without diagnostic software!

Features

• Supports SAE J1708/J1587 and J1939/CAN data links
• Both CAN ports auto detect between 250 & 500 kbps
• Supports USB full speed port at up to 2M baud rate
• Custom USB cable includes thumbscrews for secure mounting to INLINE 6
• Supports RS-232 PC serial port at up to 115.2k baud rate
• Is fully compliant with TMC’s RP1210 standard
• Small enough to fit in pocket
• Attractive black powder coated aluminum housing provides ruggedness
• Derives 8 V to 50 V DC power from vehicle
• Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
• Internal Flash memory allows firmware upgradeability
• Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
• Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
• INLINE 6 is certified to meet European CE requirements
• Rated for -40° to +85° C operating temperature
• INLINE 6 meets rigorous Cummins in-cab environmental test requirements
